Introduction to Flat Knitting Machines: What Are They and How Do They Work?

Flat knitting machines are essential tools in the textile and garment industry, known for their versatility in creating flat, two-dimensional knitted fabrics. They are widely used in producing garments like sweaters, scarves, socks, and even home textiles like blankets and cushion covers. In this blog, we will explore what flat knitting machines are, their basic components, and how they work to create high-quality knit fabrics.

What Are Flat Knitting Machines?

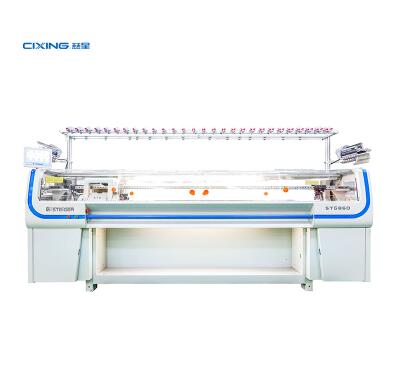

A flat knitting machine is a type of knitting device designed to produce flat fabrics, as opposed to the continuous tubular fabrics created by circular knitting machines. As the name suggests, the fabric is knitted in flat, rectangular pieces, which can then be sewn together or finished into a garment. Flat knitting machines can either be manual or computerized, with the latter offering much more precision, automation, and customization options.

Key Components of Flat Knitting Machines

Flat knitting machines have several key components that work together to create the final fabric. Understanding these parts is crucial to grasping how the machine operates:

- Needle Bed: The needle bed holds the needles in a flat, horizontal position. There are typically two needle beds facing each other, allowing for the creation of fabrics with a ribbed structure or double-layered knits.

- Needles: Each needle holds and manipulates a single loop of yarn during the knitting process. The needles move up and down to interlock the yarns, forming the knitted fabric.

- Cams: The cams control the movement of the needles. They guide the needles into the correct positions for knitting, tucking, or transferring stitches.

- Carriage: The carriage moves back and forth along the needle bed, selecting the needles and guiding the yarn to form the fabric. In computerized models, the carriage’s movement is controlled by pre-programmed patterns.

- Sinker System: Sinkers help control the fabric as it is being formed, ensuring that the loops are shaped properly and the fabric doesn’t bunch up.

How Do Flat Knitting Machines Work?

The knitting process on a flat knitting machine involves several steps:

1. Yarn Feeding: Yarn is fed into the machine either manually or through an automatic feeder. In computerized machines, multiple yarns can be fed at once to create complex designs.

2. Needle Selection: The carriage selects specific needles to knit or transfer stitches based on the pattern programmed into the machine. In older manual machines, this selection is done by hand.

3. Stitch Formation: As the carriage moves across the needle bed, the selected needles rise and fall to form loops with the yarn. These loops are interlocked to create rows of knitted fabric. This process continues as the carriage moves back and forth across the needle bed.

4. Pattern Control: In computerized flat knitting machines, digital patterns are programmed into the machine, allowing for the creation of intricate designs like cables, lace, or even Jacquard patterns. The software controls which needles knit or transfer stitches to achieve the desired pattern.

5. Fabric Finishing: After knitting, the fabric can be taken off the machine for finishing, which may include linking, sewing, or steaming to set the shape and structure of the fabric.

Manual vs. Computerized Flat Knitting Machines

There are two primary types of flat knitting machines: manual and computerized.

- Manual Flat Knitting Machines: These machines are operated by hand, where the operator controls the needle selection, tension, and yarn feeding. They are less expensive and are suitable for smaller-scale or more artisanal production.

- Computerized Flat Knitting Machines: These machines use advanced technology to automate the knitting process. Patterns are programmed into the machine using specialized software, and the machine selects needles, feeds yarn, and controls tension automatically. These machines are capable of producing complex patterns, seamless garments, and multi-gauge fabrics quickly and efficiently.

Applications of Flat Knitting Machines

Flat knitting machines are incredibly versatile and used in various industries, including fashion, sportswear, medical textiles, and home furnishings. Their ability to knit high-quality, customizable fabrics makes them popular for creating:

- Sweaters and cardigans

- Scarves and shawls

- Ribbed or textured fabrics

- Seamless knitwear

- Smart textiles (e.g., fabrics with embedded technology)

- Sportswear with engineered zones for breathability or compression

Conclusion

Flat knitting machines have revolutionized the textile industry by offering the ability to produce high-quality, intricate knit fabrics with speed and precision. Whether manual or computerized, these machines are essential tools for fabric and garment production. Understanding how they work helps unlock their full potential, making them a valuable asset for designers and manufacturers alike.
